Characteristics
  |
Used for media: gas, solid |
 |
Good chemical resistance Table of chemical resistance HERE |
 |
Resistant to hydrolysis |
 |
UV resistant
|
 |
Flexibility ★★★★★ |
 |
Axially compressible |
 |
Temperature resistance: -20 ÷ +80°C |
 |
Production length: 10m Packing system for standard e-shop orders: DN 80÷200mm - 1pc = up to 10m DN 201÷400mm - 1pc = up to 5m (for longer than 5m units, contact us for a special transport offer) Example: if ordered 12m of DN 100mm and 8m of DN 300mm - standardly you recieve 10m+2m of DN 100mm and 5m+3m of DN 300mm. If you need different lenghts (for example 6+6m DN 100mm and 4+4m DN 300mm) note it in the order notes. Note! When ordering a quantity other than the production length, it is not possible to return the goods. |
Technical parameters
| Application |
- extraction of air, gases, chemical fumes, vapors, exhaust gases, flue gases, exhaust gases from aggregates, welding fumes - for ventilation and dedusting systems - for equipment in dynamic operation |

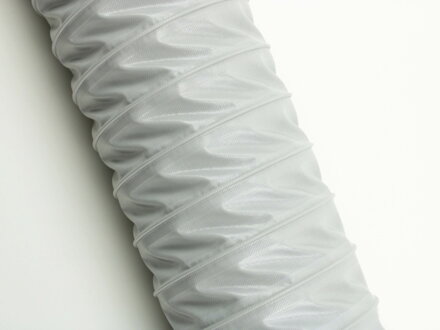

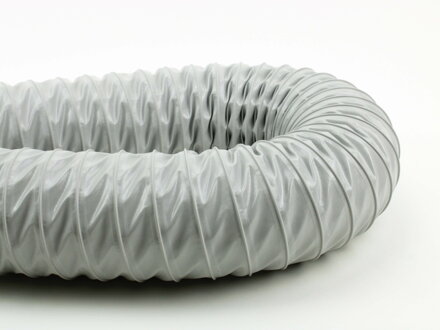

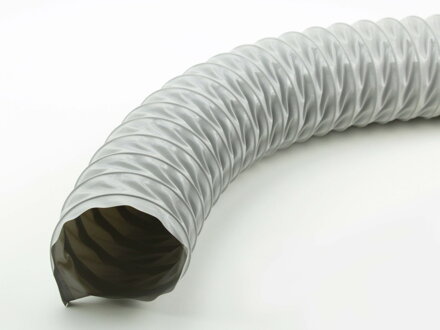

| Wall material | PES fabric coated with PVC (grey) |
| Wall thickness | 0,25 mm between spirals |
| Instructions for using hoses |
Parameters of all produced diameters
| Product catalog | Inner diameter [mm] | Outer diameter [mm] | Bending radius [mm] | Approx. Weight [kg/m] | Vacuum [bar] |
| 2 - 08 - 0080 | 80-82 | ~84 | 84 | 0,5 | -0,08 |
| 2 – 08 – 0100 | 100-102 | ~104 | 104 | 0,6 | -0,05 |
| 2 – 08 – 0120 | 120-122 | ~124 | 124 | 0,6 | -0,05 |
| 2 – 08 – 0125 | 125-127 | ~129 | 129 | 0,6 | -0,05 |
| 2 - 08 - 0130 | 130-132 | ~134 | 134 | 0,7 | -0,05 |
| 2 – 08 – 0150 | 150-152 | ~154 | 154 | 0,7 | -0,04 |
| 2 – 08 – 0160 | 160-162 | ~164 | 164 | 0,8 | -0,03 |
| 2 – 08 – 0180 | 180-182 | ~184 | 184 | 0,8 | -0,03 |
| 2 – 08 – 0200 | 200-202 | ~204 | 204 | 0,9 | -0,02 |
| 2 – 08 – 0250 | 250-252 | ~256 | 256 | 1,1 | -0,02 |
The tolerance for all parameters except diameters is 5%. The tolerance for diameters is max. 2%. All parameters apply to room temperature (approx. 22°C). It is possible to produce a hose of non-standard diameter for a special order. The commercial lengths of the hoses are measured while maximum extension. Ground the spiral to discharge static electricity. The flow direction is indicated by an arrow on the hose.
